70640 Amphenol Connector Champ RJ21 64 Pin Male Centronic Connector 32pairs IDC Type w/ Side Entry Matel Cover

Dongguan Fuyconn Electronics Co,.LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 70640 Amphenol Connector Champ RJ21 64 Pin Male Centronic Connector 32pairs IDC Type w/ Side Entry Matel Cover from wholesalers

    Buy cheap 70640 Amphenol Connector Champ RJ21 64 Pin Male Centronic Connector 32pairs IDC Type w/ Side Entry Matel Cover from wholesalers
    • Buy cheap 70640 Amphenol Connector Champ RJ21 64 Pin Male Centronic Connector 32pairs IDC Type w/ Side Entry Matel Cover from wholesalers
    • Buy cheap 70640 Amphenol Connector Champ RJ21 64 Pin Male Centronic Connector 32pairs IDC Type w/ Side Entry Matel Cover from wholesalers
    • Buy cheap 70640 Amphenol Connector Champ RJ21 64 Pin Male Centronic Connector 32pairs IDC Type w/ Side Entry Matel Cover from wholesalers

    70640 Amphenol Connector Champ RJ21 64 Pin Male Centronic Connector 32pairs IDC Type w/ Side Entry Matel Cover

    Ask Lasest Price
    Brand Name : FUYCONN
    Certification : UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
    Model Number : FUY57072-1
    Price : USD2 - USD5
    Delivery Time : 7-10 days
    Payment Terms : T/T or Paypal
    Supply Ability : 1 million/ month
    • Product Details
    • Company Profile

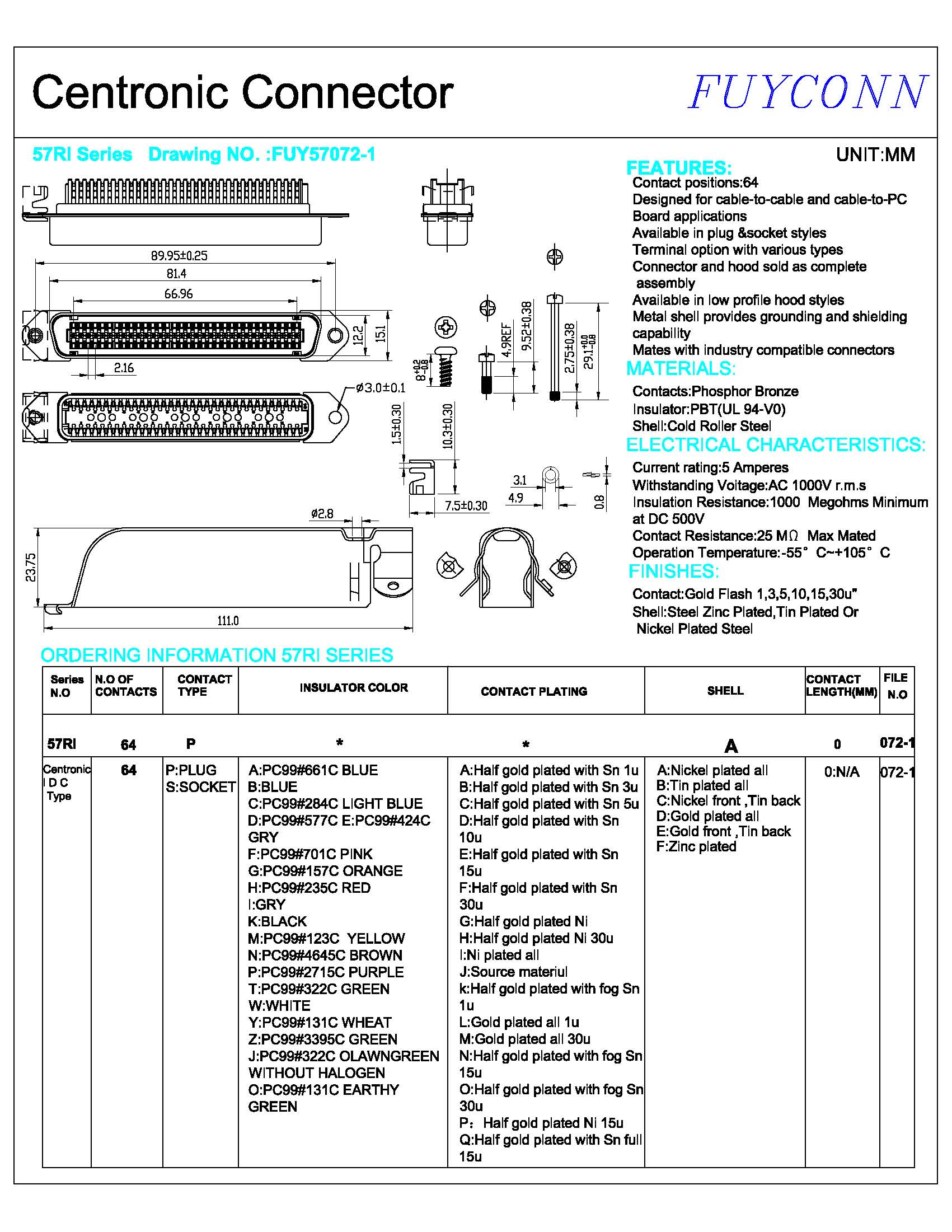

    70640 Amphenol Connector Champ RJ21 64 Pin Male Centronic Connector 32pairs IDC Type w/ Side Entry Matel Cover

    70640 Amphenol Champ RJ21 64 Pin Male Centronic IDC Side Entry Connector with Matel Cover

    Product features
    1. Product Name:
    Centronic Connector
    2. Product Line:
    57 Connector
    3. Connector Type
    IDC Centronic Connector
    4. Connector Gender:
    Male Plug
    5. Number of Position:
    32pairs / 64 pin
    6. Contact Material:
    Phosphore Bronze
    7. Contact Plating:
    1U", 3U", 5U", 10U", 15U",30U"
    8. Insulation Material:
    PBT
    9. UL Flammability Rating
    UL-94-V0
    10. Housing
    90 degree Metal Cover/ 70640 Hood
    11. Pitch
    2.16mm
    12. Certification
    UL Certificated
    Electrical Specifications
    1. Current Rating:
    5Amp
    2. Voltage rating:
    DC 1000v per minute
    3. Insulator Resistance:
    1000Mn MIN.(at 500V DC)
    4. Operation Temperature:
    -55°C to +105°C

    Detail Description

    Product Category: Centronic connector
    Product Line: Champ Connector
    Type: Centronic IDC Connector
    Connector Style:Plug
    Number of Terminal: 64 pin
    Gender: Male
    Insulator Color: Grey or Blue
    Insulator Material: PBT
    Contact pin Material: Phosphor Bronze
    Shield Plating: Nickel
    Centerline = 2.16mm [0.085in]
    Mounting Option: Side Cable Exit
    Cover: Metal Cover or No Cover both are available
    Application: Communication Equipment

    Electrical Specifications

    1. Current Rating:Electrical Specifications5Amp
    2. Voltage rating:DC 1000v per minute
    3. Insulator Resistance:1000Mn MIN.(at 500V DC)
    4. Operation Temperature:-55°C to +105°C

    Advantage:

    1,ROHS compliant, UL-approved
    2,High quality, Competitive price
    3,Quick delivery time
    4,Free sample available in 2 days
