DDK 57-30 Ribbon Connector Solder Cup 5730140 5730240 5730360 5730500 DDK Connector

Catalog: CENTRONIC CONNECTOR.pdf

DDK 57-30 Connector Male Solder Cup Centronics Connector w/ T Shape Metal Hood

Centronic Male 57-30360 Connector, Straight Angle 14pin 24pin 36pin 50pin Solder Centronic Connector with 180 degree metal cover

DDK 57-30 Cable Plug Top Cable Entry Solder Centronics Connector

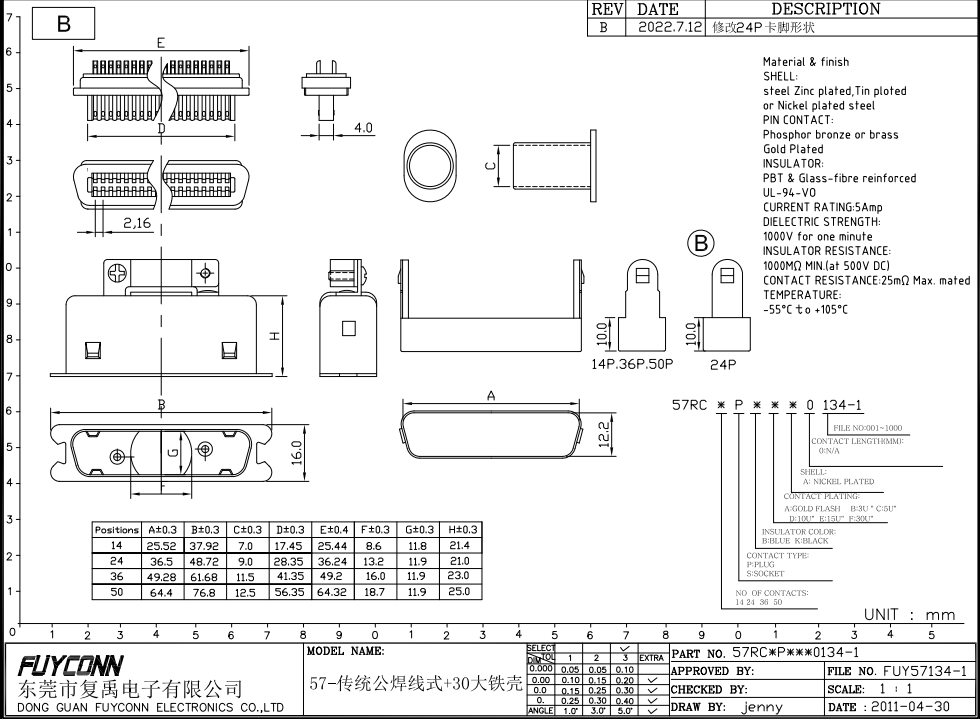

FUY57134 180° Metal Hood Solder 36 pins Centronix Connector Male Plug Type

The Centronics 50-pin connector is arranged in two rows of pins each with 25 contacts. This connector is held in place by bail locks. The Centronics 50 connector is most often used by older SCSI-1 devices (scanners, storage devices, etc.). A slight variant of the Centronics 50 connector is used in voice/data applications. This variant is commonly called a Telco connector.

Product Features

Materials

Electrical Character

Common Features

Application

Detail Description:

Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic Solder Connector
Number of Terminal: 14 24 36 50pin
Connector Style:Plug
Gender: Male
Centerline = 2.16mm [0.085in]
Conver Style: 180° Metal Hood
Insulator Color: Black or Blue
Insulator Type: Hard connection
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel
Mounting Option: 180°Cable Exit Angle, MD Type

Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series and RJ series. We have over 1,000 models for you to choose from. Due to our superior quality and service our products are well-received in the US, Canada, the Middle East, Asia and Europe.

Our ISO 9001:2008- and ISO 14001:2004-certified factory covers a total of 3,000 square meters and more than 200 killed workers, there are R&D Department, Molding workshop, Plastic Inject workshop, Stamping workshop, Assembly production workshop., we are able to produce 1 million pieces of connectors each month. Additionally, we also keep a regular stock of faster moving products to ensure quick delivery of goods. This is why we can deliver products in as fast as 7 to 10 days.

Our products are UL- and SGS-certified and are compliant with the RoHS Directive. The pursuit of perfect quality, to meet customer quality requirement, to ensure the product defect rate is less than 0.5% and 99% of our customers repeat their orders with us.

Trust Credit management, Sustainable development, we are the honesty and long-period coorperation partner
