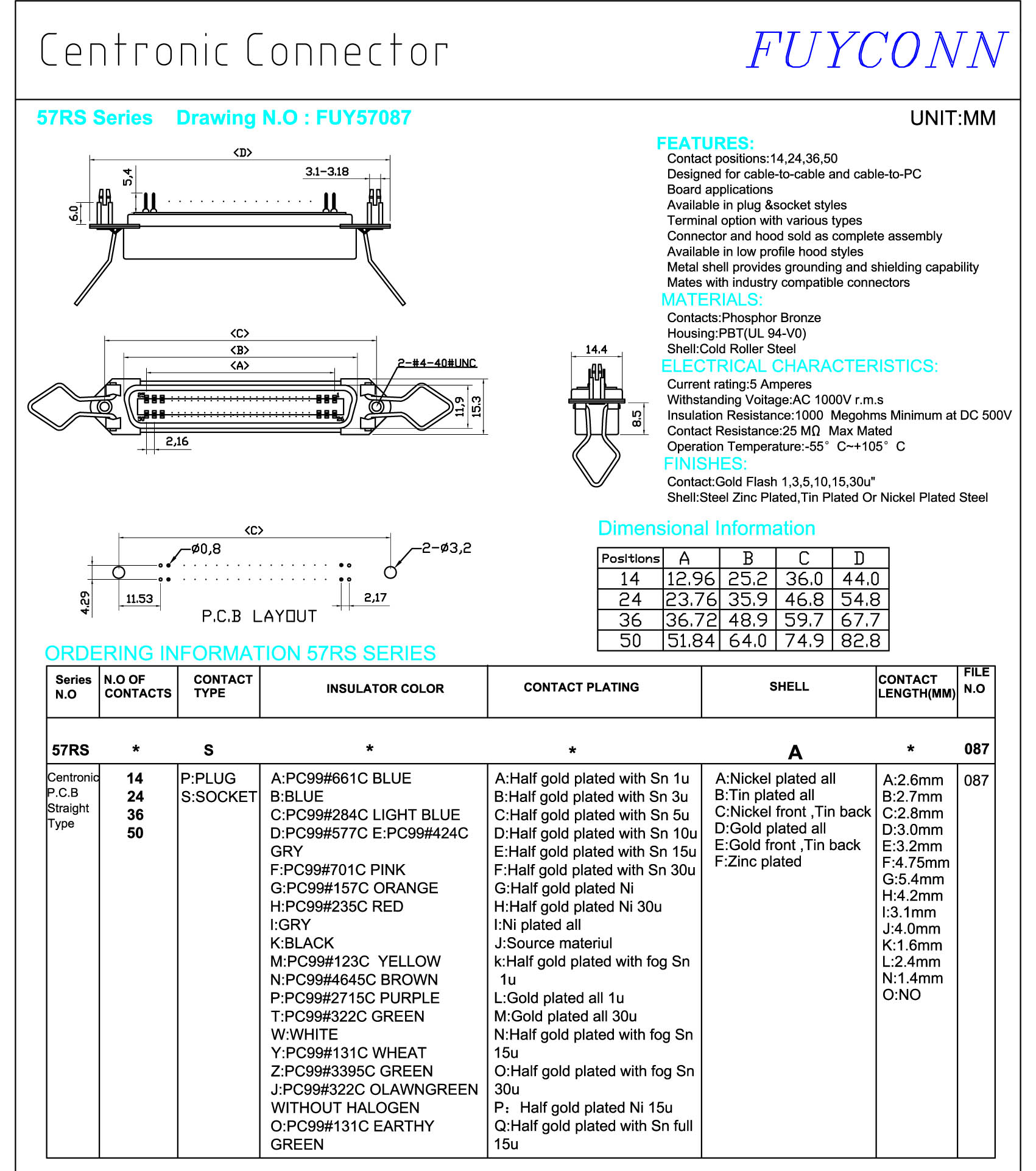

DDK Solder DIP Connector PCB Straight 14 24 36 50 pin Female centronics

2.16mm Champ DDK 50pin Centronic Connector, Female Solder DIP Termination PCB Straight 57 Connector with board Lock and latch

180 Degree PCB Mount Straing Female Connector 36 pin For Printer

2.16mm pitch champ Female Receptacle Staight Connector 14 24 36 50 way PCB Mounting

Application

The Centronics 36-pin connector is arranged in two rows of pins, each with 18 contacts. The connector is held in place by bail locks. The 36-pin connector is often used for parallel applications, especially for printers. It is also referred to as an IEEE-1284 Type B connector.

The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black and blue in color.

Advantage:
1, ROHS compliant, UL-approved
2, High quality, Competitive price
3, Quick delivery time
4, Free sample available in 2 days

Common Features

Materials

Electrical Character

Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series and RJ series. We have over 1,000 models for you to choose from. Due to our superior quality and service our products are well-received in the US, Canada, the Middle East, Asia and Europe.

Our ISO 9001:2008- and ISO 14001:2004-certified factory covers a total of 3,000 square meters and more than 200 killed workers, there are R&D Department, Molding workshop, Plastic Inject workshop, Stamping workshop, Assembly production workshop., we are able to produce 1 million pieces of connectors each month. Additionally, we also keep a regular stock of faster moving products to ensure quick delivery of goods. This is why we can deliver products in as fast as 7 to 10 days.

Our products are UL- and SGS-certified and are compliant with the RoHS Directive. The pursuit of perfect quality, to meet customer quality requirement, to ensure the product defect rate is less than 0.5% and 99% of our customers repeat their orders with us.

Trust Credit management, Sustainable development, we are the honesty and long-period coorperation partner
