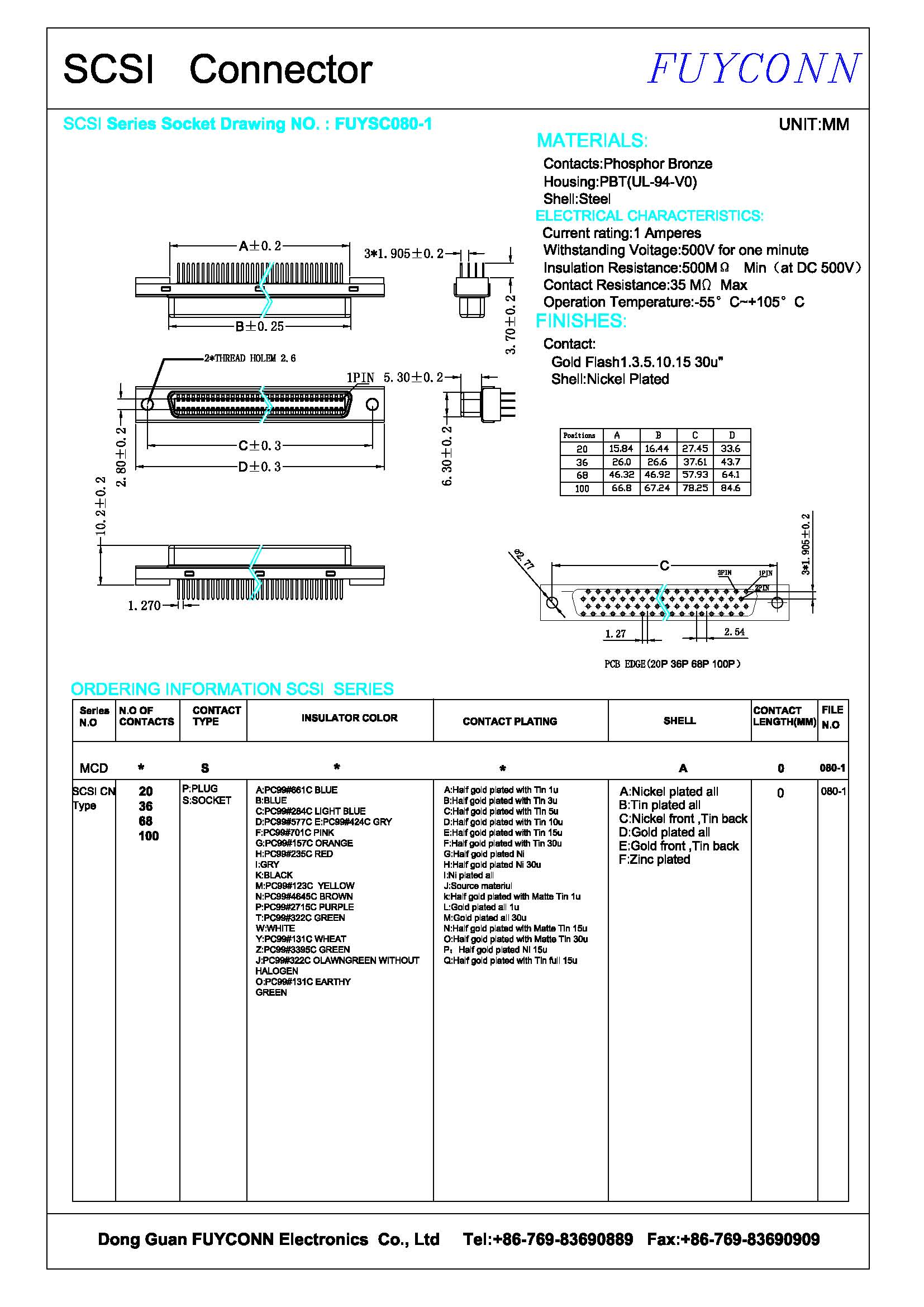

Catalog: SCSI CONNECTOR.pdf

1.27mm Pitch Vertical PCB 36 Pin MDR SCSI Connector Female Type

1.27mm CN Type Vertical PCB 36 Pin MDR Female SCSI Connector, Straight PCB DIP 36pin SCSI Female Connector W/ Vertical Terminals

SCSI (Small Computer System Interface), is a kind of more special interface bus, equipped with a variety of types of peripherals to communicate. Advanced High Speed A versatile, high-speed, and low-cost method of interconnecting a varietyof computer peripherals and consume electronic devices.

Product features

Electrical characteristics

Technology Parameters

Type: SCSI Connector

Application:

Servo

Gender:

Female

Orientation:

Straight

Insulator material:

PBT

Contact Current Rating:

1A AC/DC

Contact Resistance:

Max 35m ohm

Insulator:

PBT, glass-filled, UL94V-0 rated

Contact:

phosphor bronze

Back shell:

nickel-plated

Insulation resistance:

500MΩ (minimum)

Contact resistance:

35mΩ (maximum)

No. of Pin :36Pin 36Pin 68Pin

Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series and RJ series. We have over 1,000 models for you to choose from. Due to our superior quality and service our products are well-received in the US, Canada, the Middle East, Asia and Europe.

Our ISO 9001:2008- and ISO 14001:2004-certified factory covers a total of 3,000 square meters and more than 200 killed workers, there are R&D Department, Molding workshop, Plastic Inject workshop, Stamping workshop, Assembly production workshop., we are able to produce 1 million pieces of connectors each month. Additionally, we also keep a regular stock of faster moving products to ensure quick delivery of goods. This is why we can deliver products in as fast as 7 to 10 days.

Our products are UL- and SGS-certified and are compliant with the RoHS Directive. The pursuit of perfect quality, to meet customer quality requirement, to ensure the product defect rate is less than 0.5% and 99% of our customers repeat their orders with us.

Trust Credit management, Sustainable development, we are the honesty and long-period coorperation partner
