    1.5mm Low Profile Male SLIM Connector , 9Pin VGA D-SUB Connector

    Ask Lasest Price
    Brand Name : FUYCONN
    Model Number : FUYSLIM4002
    Certification : ROHS-certified, ISO 9001:2008, ISO 14001:2004
    Price : Negotiable
    Payment Terms : T/T or Paypal
    Supply Ability : 1 million/ month
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    1.5mm Low Profile Male SLIM Connector , 9Pin VGA D-SUB Connector

    1.5mm Low-Profit D-SUB Connector PCB DIP Right Angle 9Pin VGA Connector, 9 pin Male SLIM Connector

    D-type connectors most commonly consist or two and sometimes more parallel rows of connections. The connectors have a D-format metal shell. This not only provides mechanical strength to the connector, but it also provides some limited screening as well - the metal shells of the plug and socket make contact to provide screening. Also the panel mounting connectors are typically secured to the panel using nuts that have an additional thread that allows the mating connector to be secured to it to prevent it working loose. Additionally the free connectors can have backshells that can provide screening and can be connected to the cable screen, or if plastic, they can provide protection. Strain relief on the cable is also provided.
    The pins in the more common connector types with two rows of pins (e.g. 9, 15, 25 and 37 way) are spaced approximately 0.108 inch (2.74 mm) apart with the rows spaced 0.112 inch (2.84 mm) apart. High pin counts and higher pin densities can be achieved using more rows of pins.
    Product Feature
    1. Product Name:
    D-SUB Connector
    2. Product Line:
    SLIM Connector
    3. No. of pin
    9pin
    4. Material:
    PBT
    5.Contact Type
    Right Angle
    6. Gender
    Male

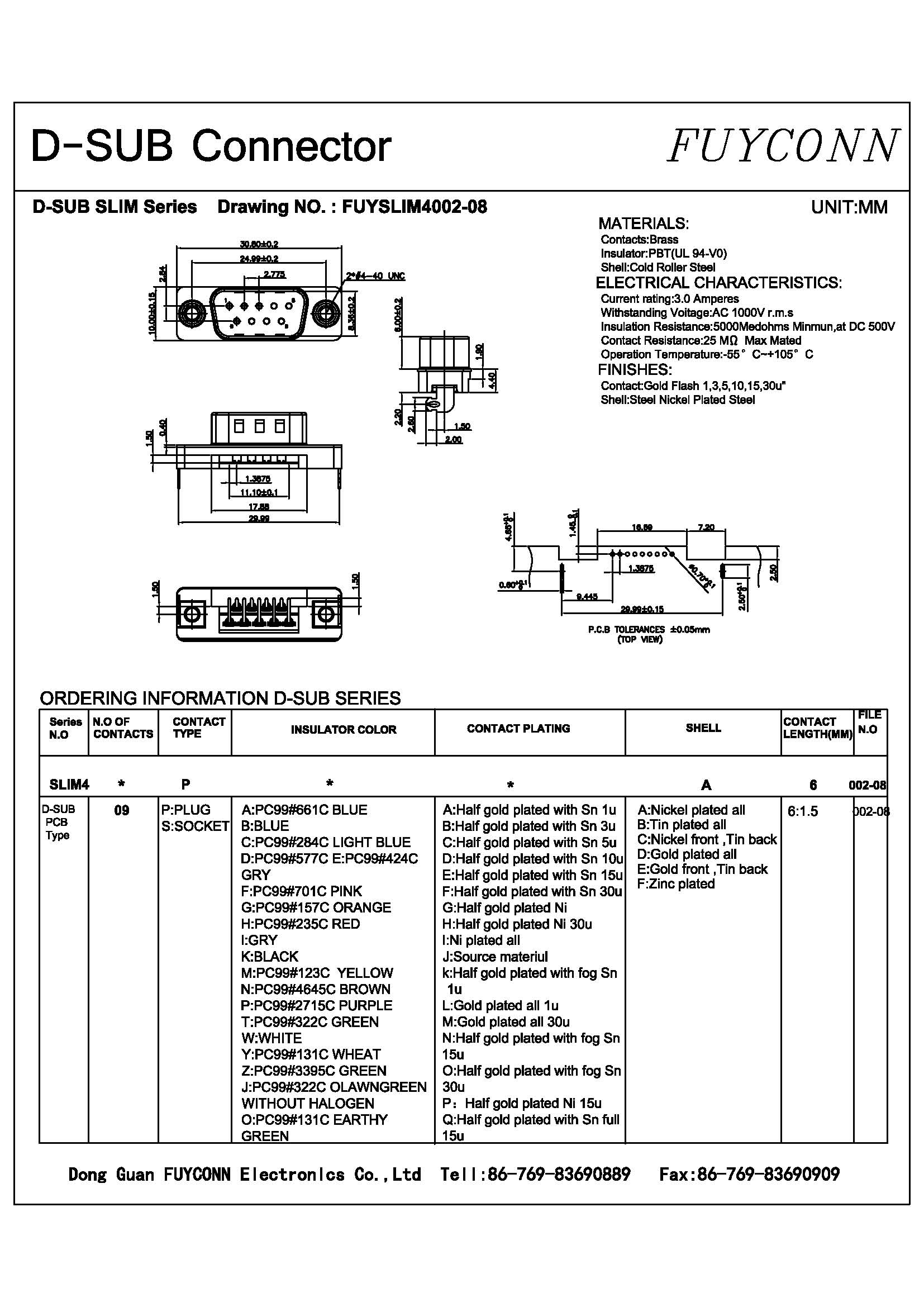

    Data Sheet
