    Straight Angle PCB Connectors, 24 Pin Centronic Female PCB Connector Certified UL

    Ask Lasest Price
    Brand Name : FUYCONN
    Certification : UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
    Model Number : FUY57119
    Price : Negotiable
    Delivery Time : 7-10 days
    Payment Terms : T/T or Paypal
    Supply Ability : 1 million/ month
    • Product Details
    • Company Profile

    Straight Angle PCB Connectors, 24 Pin Centronic Female PCB Connector Certified UL

    Straight Angle PCB Connectors, 24 Pin Centronic Female PCB Connector Certified UL

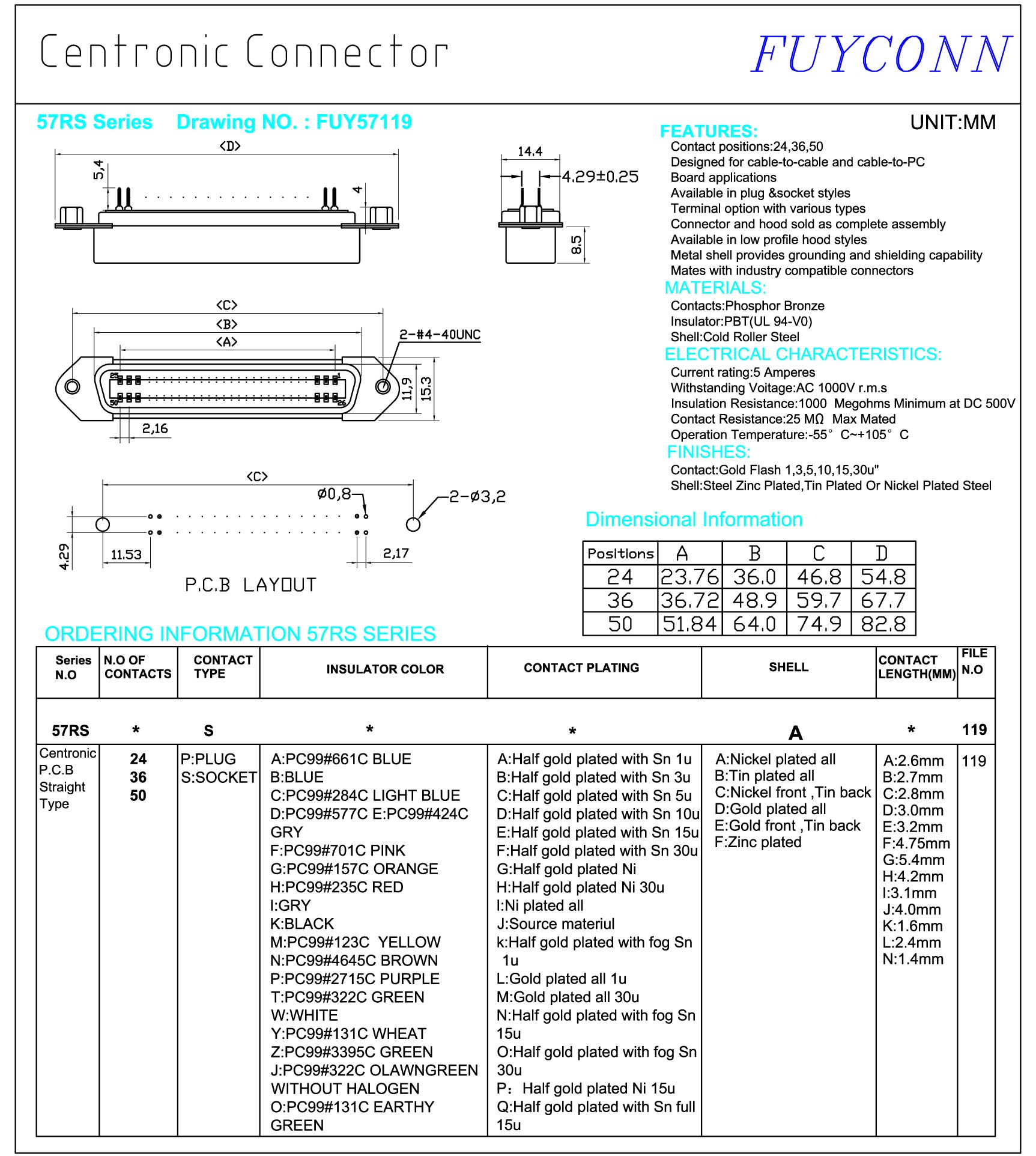

    24 Pin Female Centronic PCB Stragiht Connector Certified UL

    Detail Description
    Product Category: Centronic connector
    Product Line: Champ Connector
    Type: Straight Angle PCB Connector
    Number of Terminal: 24 pin
    PCB Mount Style:Vertical
    Connector Style:Receptacle
    Gender: Female
    Insulator Color: Black or Blue
    Insulator Material: PBT
    Contact pin Material: Phosphor Bronze
    Shield Plating: Nickel
    Centerline = 2.16mm [0.085in]
    Mounting Option: Back Rivet Hex Head Nuts
    Application: PCB Board


    Common Features

    Designed for Cable-to-cable and cable-to-PC Board applications
    Board Application
    Available in Plug & Socket styles
    Terminal Option with various types
    Connector and hood sold as complete assembly
    Available in low profile hood style
    Metal shell provides grounding and shielding capability
    Mates with industry compatible connector

    Product Features

    Product Type:Centronics PCB Mounting Connector
    Product Line:Champ Connector
    Gender:Female
    Connector Style:Receptacle
    Certerline :2.16mm(0.85in)
    Number of Position:14 24 36 50pin
    Contact Plating:Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
    Terminals TypeStraight Terminals
    Insulator Color:Black or Blue
    Shielded:Yes
    Orientation:Straight
    Mating connector lock:Screwlock

    Materials

    Contact Material:Phosphor Bronze
    Insulator:PBT (UL 94-V0)
    ShellNickel Plated Steel

    Electrical Character

    Current Rating:5Amp
    Withstanding Voltage:AC 1000v r.m.s
    Insulation Resistance:1000 Megohms Minimum at DC 500V
    Contact Resistance:25M∩ Max Mated
    Operation Temperature:-55°C to +105°C

    Application

    1, VDSL Teleccom Equipment
    2, Computer Peripherals
    3, Communication Equipment
    4, PCB Board
    5, Cable to Panel
    6, Cable to cable
    7,Computer terminal
    8,Telemetering
    9,Test Equipment
    10, Printer


    Advantage:
    1,ROHS compliant, UL-approved
    2,High quality, Competitive price
    3,Quick delivery time
    4,Free sample available in 2 days
