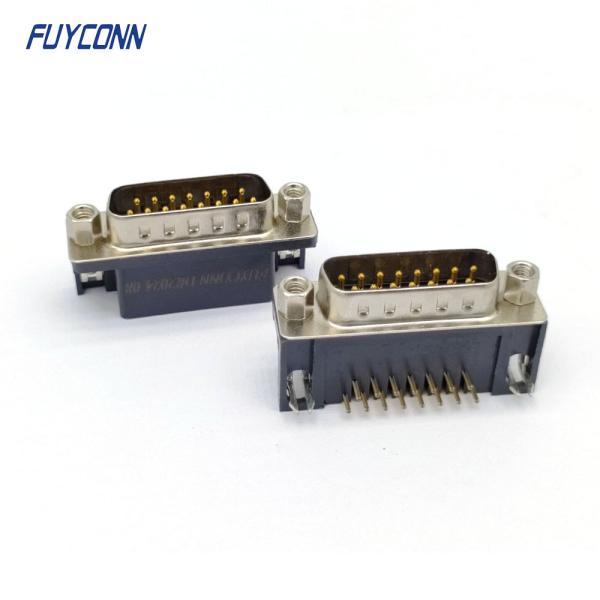

    Right Angle PCB D-SUB Connector Male Plug D Sub 15 Pin Connector (9.4mm)

    Ask Lasest Price
    Brand Name : FUYCONN
    Certification : UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
    Model Number : FUYDR2024-15P
    Price : Negotiable
    Delivery Time : 7-10 days
    Payment Terms : T/T or Paypal
    Supply Ability : 1 million/ month
    • Product Details
    • Company Profile

    Right Angle PCB D-SUB Connector Male Plug D Sub 15 Pin Connector (9.4mm)

    9pin 15pin 25pin 37Pin Right Angle PCB D-SUB Connector Rivet Type, 9.4mm distance 9 15 25 37 pin Male D-SUB Connector

    D-type connectors most commonly consist or two and sometimes more parallel rows of connections. The connectors have a D-format metal shell. This not only provides mechanical strength to the connector, but it also provides some limited screening as well - the metal shells of the plug and socket make contact to provide screening. Also the panel mounting connectors are typically secured to the panel using nuts that have an additional thread that allows the mating connector to be secured to it to prevent it working loose. Additionally the free connectors can have backshells that can provide screening and can be connected to the cable screen, or if plastic, they can provide protection. Strain relief on the cable is also provided.
    The pins in the more common connector types with two rows of pins (e.g. 9, 15, 25 and 37 way) are spaced approximately 0.108 inch (2.74 mm) apart with the rows spaced 0.112 inch (2.84 mm) apart. High pin counts and higher pin densities can be achieved using more rows of pins.
    Product Feature
    1. Product Name:
    D-SUB Connector
    2. Product Line:
    PCB D-SUB Connector
    3. No. of pin
    9pin 15pin 25pin 37pin
    4. Material:
    PBT
    5.Contact Type
    Right Angle
    6. Gender
    Male

    Data Sheet


    • Application

    The D-type connector has been used in many applications as a multi-way connector, but it is probably most widely known as the connector used for RS-232 serial links. In fact the
    D-type connector was used for the serial link on most computers for many years, and today variations of D-type connectors are still found on most computers.
    D-sub or D-subminiature connectors are common types of electrical components typically used in computing to help form connections on a circuit board.
