    57 CN Series Male Right Angel PCB Centronics 50 Pin Connector For PCB Board

    Ask Lasest Price
    Brand Name : FUYCONN
    Certification : UL 94-V0, ROHS-certified ISO 9001:2008, ISO 14001:2004
    Model Number : FUY57140
    Price : Negotiable
    Delivery Time : 7-10 days
    Payment Terms : T/T or Paypal
    Supply Ability : 1 million/ month
    • Product Details
    • Company Profile

    57 CN Series Male Right Angel PCB Centronics 50 Pin Connector For PCB Board


    Plug Male Right Angel PCB 50 36 24 14 Pin Centronics Connector For Printer


    Detail Description

    Product Category: Centronic connector

    Product Line: Champ Connector

    Type: Right Angle PCB Connector

    Number of Terminal: 36 pin 50pin 24pin 14pin

    PCB Mount Style:Right Angle

    Connector Style:Plug

    Gender: Female

    Insulator Color: Black or Blue

    Insulator Material: PBT

    Contact pin Material: Phosphor Bronze

    Shield Plating: Nickel

    Centerline = 2.16mm [0.085in]

    Mounting Option: Reversed, Round Head Screws, L Bracket

    Application: PCB Board

    Advantage
    1,ROHS compliant, UL-approved
    2,High quality, Competitive price
    3,Quick delivery time
    4,Free sample available in 2 days


    Common Features

    Designed for Cable-to-cable and cable-to-PC Board applications

    Board Application

    Available in Plug & Socket styles

    Terminal Option with various types

    Connector and hood sold as complete assembly

    Available in low profile hood style

    Metal shell provides grounding and shielding capability

    Mates with industry compatible connector


    Product Features

    Product Type:

    Centronics PCB Mounting Connector

    Product Line:

    Champ Connector

    Gender:

    Male

    Connector Style:

    Plug

    Certerline :

    2.16mm(0.85in)

    Number of Position:

    50 pin 36pin 24pin 14pin

    Contact Plating:

    Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")

    Terminals Type

    Right Angle Terminals

    Insulator Color:

    Black or Blue

    Shielded:

    Yes

    Orientation:

    Right Angle

    Mating connector lock:

    Screws Lock , L Bracket


    Materials

    Contact Material:

    Phosphor Bronze

    Insulator:

    PBT (UL 94-V0)

    Shell

    Nickel Plated Steel


    Electrical Character

    Current Rating:

    5Amp

    Withstanding Voltage:

    AC 1000v r.m.s

    Insulation Resistance:

    1000 Megohms Minimum at DC 500V

    Contact Resistance:

    25M∩ Max Mated

    Operation Temperature:

    -55°C to +105°C


    Application

    1, VDSL Teleccom Equipment

    2, Computer Peripherals

    3, Communication Equipment

    4, PCB Board

    5, Cable to Panel

    6, Cable to cable

    7,Computer terminal

    8,Telemetering

    9,Test Equipment

    10, Printer

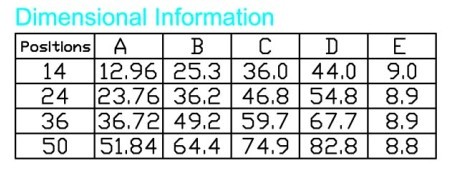

    Technology Parameters
