    Champ Male solder Centronics Connector 14pin 24pin 36pin 50pin 64pin

    Ask Lasest Price
    Brand Name : FUYCONN
    Certification : UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
    Model Number : FUY57144
    Price : Negotiable
    Delivery Time : 7-10 days
    Payment Terms : T/T or Paypal
    Supply Ability : 1 million/ month
    • Product Details
    • Company Profile

    Champ Male solder Centronics Connector 14pin 24pin 36pin 50pin 64pin

    Receptacle Champ Female 14 Pin Centronics Connector , PCB Straight Angle


    FUY57144 DDK Champ 2.16mm pitch Female Centronics 14Pin Connector PCB Mounting Straight DIP Type


    This type of connector got its name from the Centronics Corporation, a manufacturer based in Nashua, New Hampshire. Back in the 1970's, Centronics made printers for use with computers. As computers and attached printers became more popular, the connector that they used became the de facto industry standard. The Centronics Corporation was purchased by Genicom (now TallyGenicom) in the 1980's, but their name lives on in this connector.


    The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black and blue in color.



    Quick Details

    Product Category: Centronic connector
    Product Line: Champ Connector
    Type: Solder Connector
    Number of Terminal: 14 24 36 50 64pin
    PCB Mount Style:Vertical
    Connector Style:Plug
    Gender: Male
    Insulator Color: Black or Blue
    Insulator Material: PBT
    Contact pin Material: Phosphor Bronze
    Shield Plating: Nickel

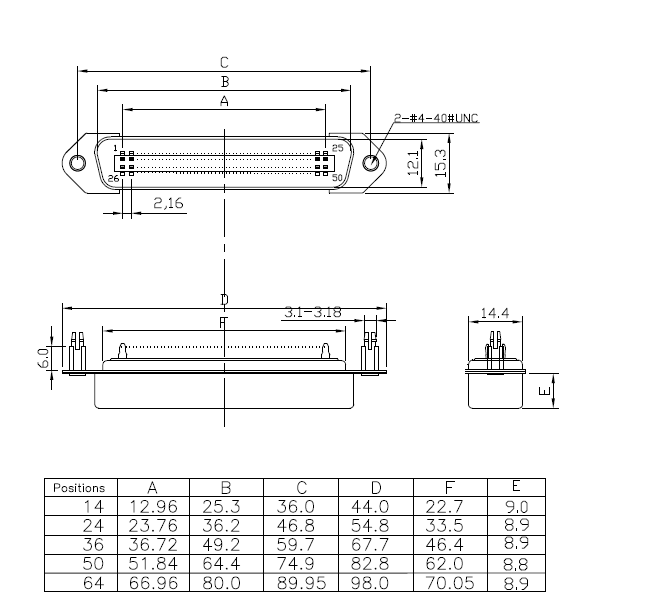

    Centerline = 2.16mm [0.085in]
    Application: PCB Board


    Common Features

    Designed for Cable-to-cable and cable-to-PC Board applications

    Board Application

    Available in Plug & Socket styles

    Terminal Option with various types

    Connector and hood sold as complete assembly

    Available in low profile hood style

    Metal shell provides grounding and shielding capability

    Mates with industry compatible connector


    Product Features

    Product Type:

    Centronics PCB Mounting Connector

    Product Line:

    Champ Connector

    Gender:

    Male

    Connector Style:

    Receptacle

    Certerline :

    2.16mm(0.85in)

    Number of Position:

    14 24 36 50 64pin

    Contact Plating:

    Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")

    Terminals Type

    Straight Terminals

    Insulator Color:

    Black or Blue

    Shielded:

    Yes

    Orientation:

    Straight

    Mating connector lock:

    Board Lock


    Materials

    Contact Material:

    Brass

    Insulator:

    PBT (UL 94-V0)

    Shell

    Nickel Plated Steel


    Electrical Character

    Current Rating:

    5Amp

    Withstanding Voltage:

    AC 1000v r.m.s

    Insulation Resistance:

    1000 Megohms Minimum at DC 500V

    Contact Resistance:

    25M∩ Max Mated

    Operation Temperature:

    -55°C to +105°C


    Application

    1, VDSL Teleccom Equipment

    2, Computer Peripherals

    3, Communication Equipment

    4, PCB Board

    5, Cable to Panel

    6, Cable to cable

    7,Computer terminal

    8,Telemetering

    9,Test Equipment

    10, Printer


    Advantage:
    1,ROHS compliant, UL-approved
    2,High quality, Competitive price
    3,Quick delivery time
    4,Free sample available in 2 days
