    Female DEC Connector, 9pin 15pin 25pin 37Pin Straight PCB D-SUB Connector

    Ask Lasest Price
    Brand Name : FUYCONN
    Certification : UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
    Model Number : FUYDS2011
    Price : Negotiable
    Delivery Time : 7-10 days
    Payment Terms : T/T or Paypal
    Supply Ability : 1 million/ month
    • Product Details
    • Company Profile

    Female DEC Connector, 9pin 15pin 25pin 37Pin Straight PCB D-SUB Connector

    9 15 25 37 pin Female Vertical PCB DB DEC Connector, 9pin 15pin 25pin 37Pin Straight PCB D-SUB Connector

    D-type connectors most commonly consist or two and sometimes more parallel rows of connections. The connectors have a D-format metal shell. This not only provides mechanical strength to the connector, but it also provides some limited screening as well - the metal shells of the plug and socket make contact to provide screening. Also the panel mounting connectors are typically secured to the panel using nuts that have an additional thread that allows the mating connector to be secured to it to prevent it working loose. Additionally the free connectors can have backshells that can provide screening and can be connected to the cable screen, or if plastic, they can provide protection. Strain relief on the cable is also provided.
    The pins in the more common connector types with two rows of pins (e.g. 9, 15, 25 and 37 way) are spaced approximately 0.108 inch (2.74 mm) apart with the rows spaced 0.112 inch (2.84 mm) apart. High pin counts and higher pin densities can be achieved using more rows of pins.
    Product Feature
    1. Product Name:
    D-SUB Connector
    2. Product Line:
    DEC Connector
    3. No. of pin
    9pin 15pin 25pin 37pin
    4. Material:
    PBT
    5.Contact Type
    Straight
    6. Gender
    Female

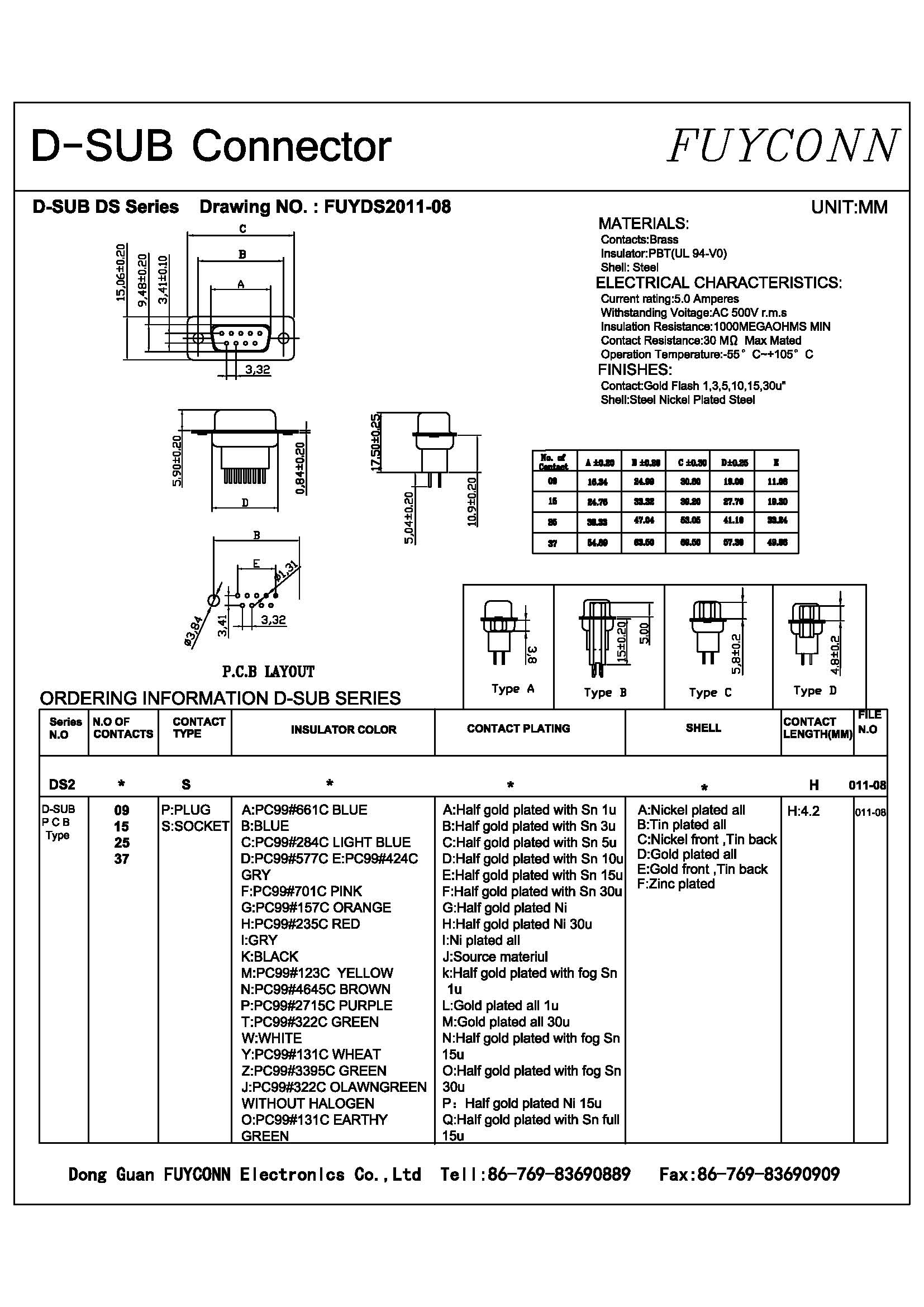

    Data Sheet
